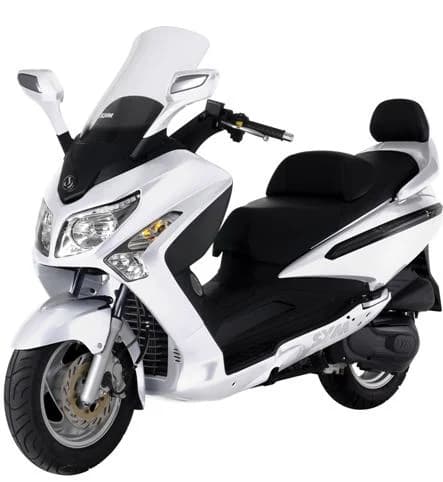

Firenze300i (LM30W-8)
Choose a section to see its exploded diagram and parts.
Click to download: official Firenze300i service manual (PDF)
The Firenze300i (LM30W-8) is powered by a 4-stroke, single cylinder, liquid cooled engine displacing 250.6cc, producing 23.4 PS @ 8000 rpm. Drive goes through a CVT with a centrifugal, dry type. It measures 2165mm long, 870mm wide and 1395mm tall, with a 1495mm wheelbase and a curb weight of 190kg. Top speed is 128 km/h. It rides on a 110/90-13 56P front tire and 130/70-13 57P rear tire, with disc, 240mm front and disc, 220mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, single cylinder, liquid cooled |
|---|---|
| Displacement | 250.6 cc |
| Bore x stroke | 71 x 63.3 mm |
| Compression ratio | 10.5:1 |
| Max power | 23.4 PS @ 8000 rpm |
| Max torque | 2.3 kg-m @ 5500 rpm |
| Fuel | unleaded, above 92 octane |
| Ignition | full transistor ignition |
| Starting system | electric starter |
| Transmission | CVT |
| Clutch | centrifugal, dry type |
| Length x width x height | 2165 x 870 x 1395 mm |
| Wheelbase | 1495 mm |
| Curb weight | 190 kg |
| Top speed | 128 km/h |
| Front tire | 110/90-13 56P |
| Rear tire | 130/70-13 57P |
| Front brake | disc, 240mm |
| Rear brake | disc, 220mm |
| Front suspension | telescopic fork |
| Rear suspension | unit swing |
Engine
Identical to 1 diagram on other models›
- Firenze250 LM25W-8 — E01 CYLINDER HEAD COVER· same parts
Identical to 1 diagram on other models›
- CityCom300i LH30W-8 — E03 CYLINDER COMP.· same parts
Identical to 1 diagram on other models›
Identical to 1 diagram on other models›
- CityCom300i LH30W-8 — E12 CRANK SHAFT· same parts
Frame / Body
Models that share the most parts with Firenze300i (LM30W-8)
Top five models ranked by the share of this model's part numbers they also list.
Buy with confidence
How SYM parts lookup works
A few simple checks help you find the right genuine part before you order.
- 1
Choose the Correct Model Code
This can be difficult. We recommend searching by VIN, checking whether your part is available across all potentially correct model codes, and contacting us with the bike vin, engine number, model and a picture if you are unsure.
- 2
Select the desired diagram
Each model page displays all section diagrams. It also shows when a section is an exact match for a part section on another model.
- 3
Select Your Parts
Each numbered part corresponds to a number in the diagram. Parts almost always show when stock is low or out, and coloured parts display their options in a dropdown.
