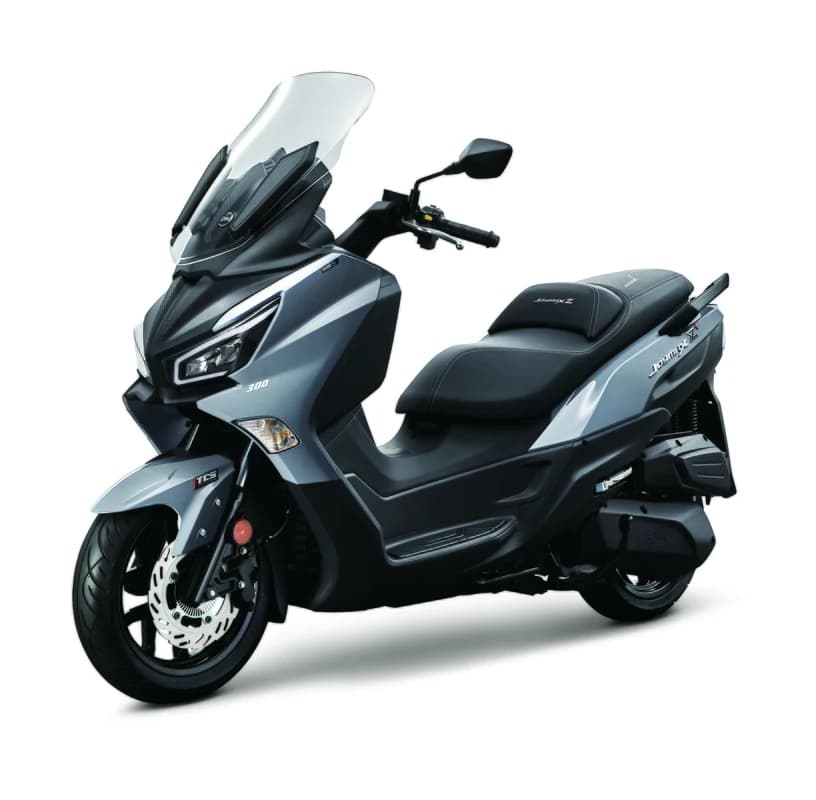

JOYMAX Z (LW30W2-EU)
Choose a section to see its exploded diagram and parts.
Click to download: official JOYMAX Z service manual (PDF)
The JOYMAX Z (LW30W2-EU) is powered by a 4-stroke, single cylinder, liquid cooled engine displacing 278.3cc, producing 26 PS @ 7500 rpm. Drive goes through a CVT with a centrifugal, dry type. It measures 2190mm long, 750mm wide and 1440mm tall, with a 1550mm wheelbase and a curb weight of 185kg. Top speed is 127 km/h. It rides on a 120/70-14 55P front tire and 140/60-13 63P rear tire, with disc, 260mm front and disc, 240mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, single cylinder, liquid cooled |
|---|---|
| Displacement | 278.3 cc |
| Bore x stroke | 75 x 63 mm |
| Compression ratio | 10.5:1 |
| Max power | 26 PS @ 7500 rpm |
| Max torque | 2.7 kgf-m @ 6750 rpm |
| Fuel | unleaded, above 92 octane |
| Ignition | full transistor ignition (ECU) |
| Starting system | electric starter |
| Transmission | CVT |
| Clutch | centrifugal, dry type |
| Length x width x height | 2190 x 750 x 1440 mm |
| Wheelbase | 1550 mm |
| Curb weight | 185 kg |
| Top speed | 127 km/h |
| Front tire | 120/70-14 55P |
| Rear tire | 140/60-13 63P |
| Front brake | disc, 260mm |
| Rear brake | disc, 240mm |
| Front suspension | telescopic fork |
| Rear suspension | unit swing |
Engine
Frame / Body
Models that share the most parts with JOYMAX Z (LW30W2-EU)
Top five models ranked by the share of this model's part numbers they also list.
Buy with confidence
How SYM parts lookup works
A few simple checks help you find the right genuine part before you order.
- 1
Choose the Correct Model Code
This can be difficult. We recommend searching by VIN, checking whether your part is available across all potentially correct model codes, and contacting us with the bike vin, engine number, model and a picture if you are unsure.
- 2
Select the desired diagram
Each model page displays all section diagrams. It also shows when a section is an exact match for a part section on another model.
- 3
Select Your Parts
Each numbered part corresponds to a number in the diagram. Parts almost always show when stock is low or out, and coloured parts display their options in a dropdown.
