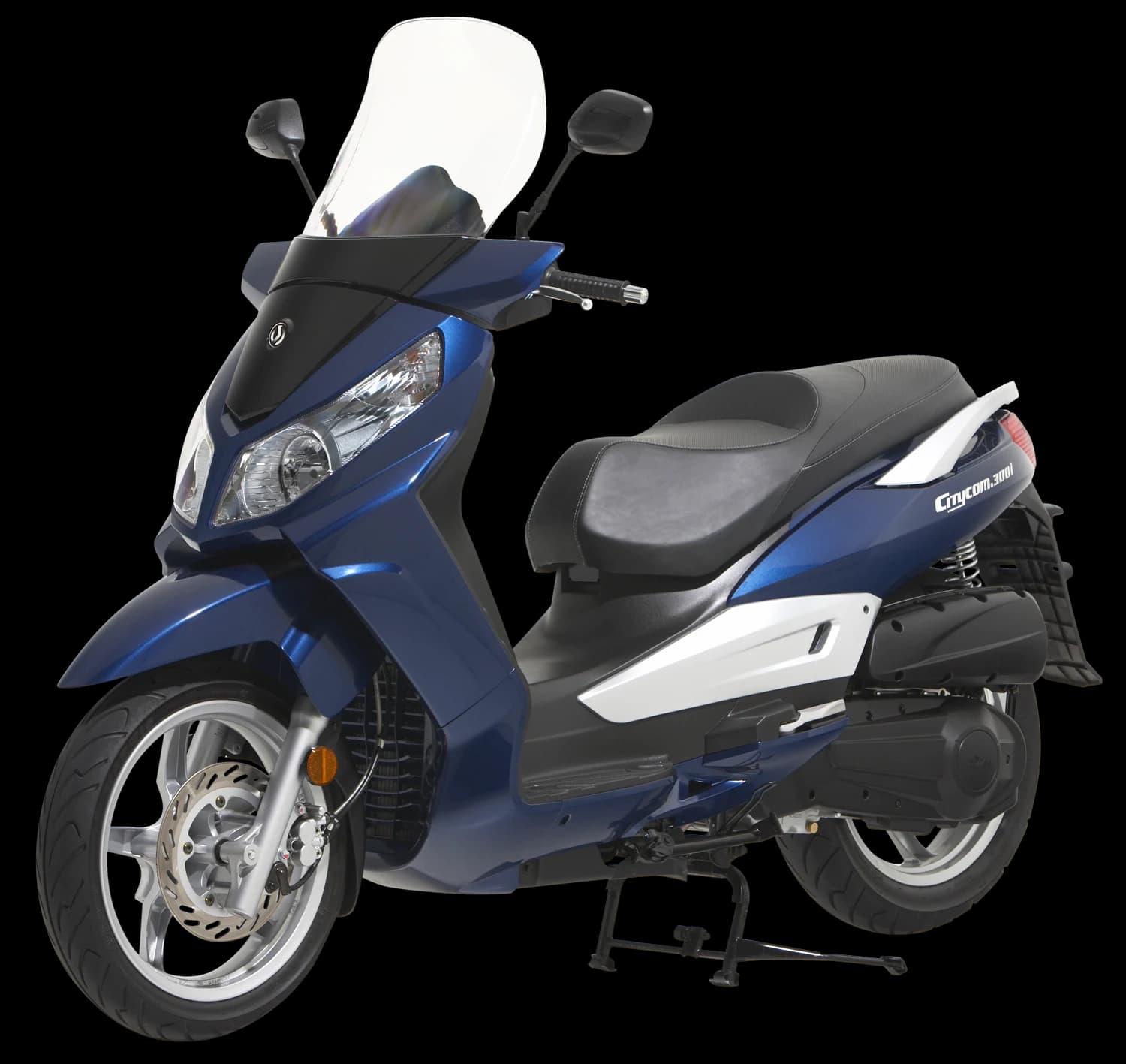

CityCom300i (LH30W-8)
Choose a section to see its exploded diagram and parts.
Click to download: official CityCom300i service manual (PDF)
The CityCom300i (LH30W-8) is powered by a 4-stroke, single cylinder, water cooled engine displacing 262.8cc, producing 15.4 kW @ 7000 rpm. Drive goes through a CVT with a centrifugal, dry type. It measures 2210mm long, 785mm wide and 1445mm tall, with a 1500mm wheelbase and a curb weight of 184kg. Top speed is above 128. It rides on a 110/70-16 52P front tire and 140/70-16 65P rear tire, with disc, 260mm front and disc, 260mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, single cylinder, water cooled |
|---|---|
| Displacement | 262.8 cc |
| Bore x stroke | 73 x 62.8 mm |
| Compression ratio | 10.0:1 |
| Max power | 15.4 kW @ 7000 rpm |
| Max torque | 23.5 N·m @ 5500 rpm |
| Fuel | unleaded gasoline |
| Ignition | full transistor ignition (ECU) |
| Starting system | electric starter |
| Transmission | CVT |
| Clutch | centrifugal, dry type |
| Length x width x height | 2210 x 785 x 1445 mm |
| Wheelbase | 1500 mm |
| Curb weight | 184 kg |
| Top speed | above 128 |
| Front tire | 110/70-16 52P |
| Rear tire | 140/70-16 65P |
| Front brake | disc, 260mm |
| Rear brake | disc, 260mm |
| Front suspension | telescopic fork |
| Rear suspension | unit swing |
Engine
Identical to 1 diagram on other models›
- Firenze300i LM30W-8 — E03 CYLINDER COMP· same parts
Identical to 1 diagram on other models›
Identical to 1 diagram on other models›
- Firenze300i LM30W-8 — E12 CRANK SHAFT· same parts
Frame / Body
Models that share the most parts with CityCom300i (LH30W-8)
Top five models ranked by the share of this model's part numbers they also list.
Buy with confidence
How SYM parts lookup works
A few simple checks help you find the right genuine part before you order.
- 1
Choose the Correct Model Code
This can be difficult. We recommend searching by VIN, checking whether your part is available across all potentially correct model codes, and contacting us with the bike vin, engine number, model and a picture if you are unsure.
- 2
Select the desired diagram
Each model page displays all section diagrams. It also shows when a section is an exact match for a part section on another model.
- 3
Select Your Parts
Each numbered part corresponds to a number in the diagram. Parts almost always show when stock is low or out, and coloured parts display their options in a dropdown.
