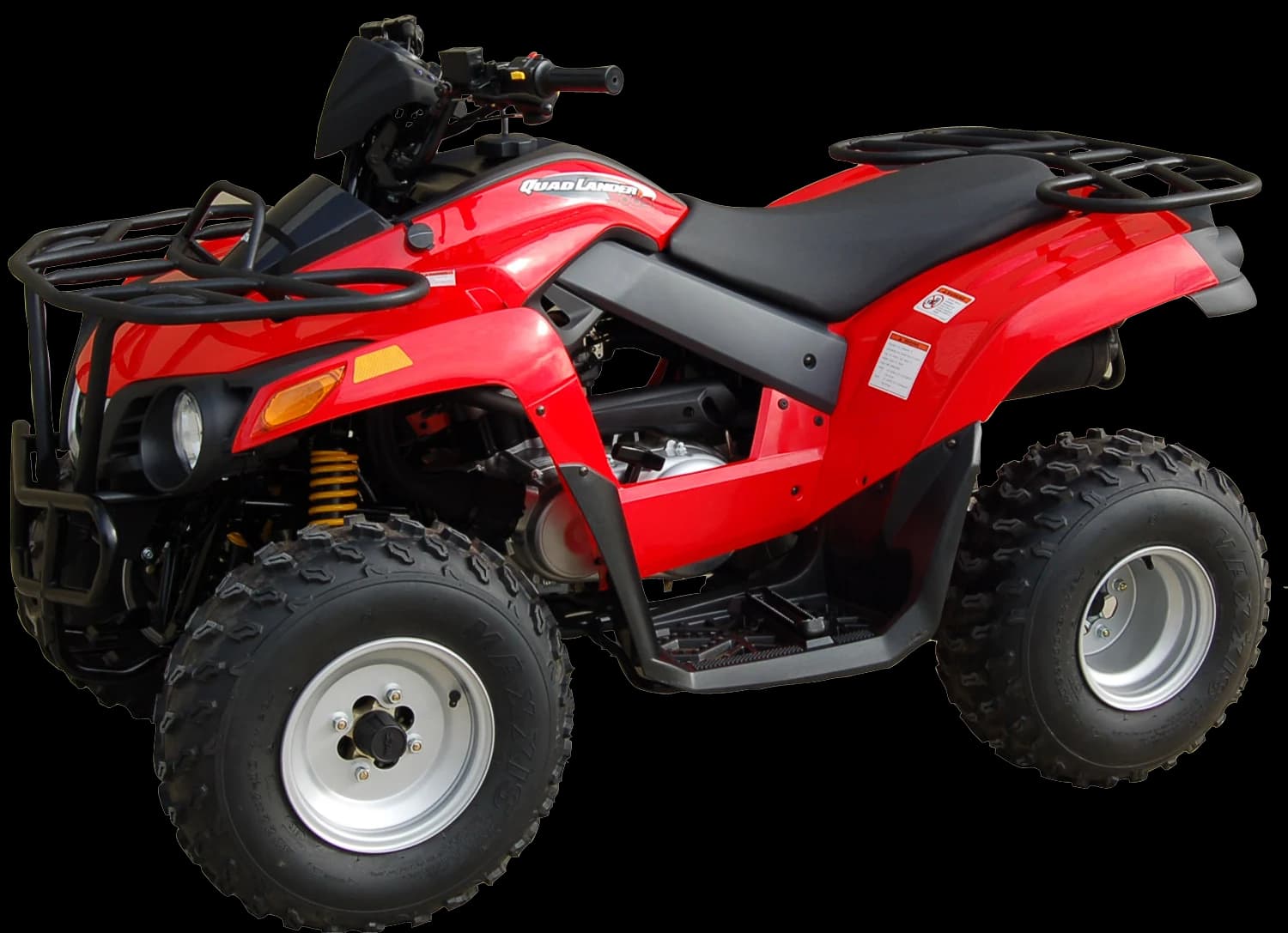

Quadlander 300 (UA30A-A)
Choose a section to see its exploded diagram and parts.
Click to download: official Quadlander 300 service manual (PDF)
The Quadlander 300 (UA30A-A) is powered by a 4-stroke, single cylinder, water cooled engine displacing 287.2cc, producing 24.5 kW @ 6500 rpm. Drive goes through a CVT, auto speed change with a centrifugal, dry type. It measures 1850mm long, 1060mm wide and 1130mm tall, with a 1200mm wheelbase and a curb weight of 243kg. Top speed is above 85. It rides on a AT22x7-10 (on-road) front tire and AT22x10-9 (on-road) rear tire, with disc, 175mm front and disc, 190mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, single cylinder, water cooled |
|---|---|
| Displacement | 287.2 cc |
| Bore x stroke | 75 x 65 mm |
| Compression ratio | 10.0:1 |
| Max power | 24.5 kW @ 6500 rpm |
| Max torque | 2.5 N·m @ 5000 rpm |
| Fuel | unleaded, above 92 octane |
| Ignition | CDI |
| Starting system | electric starter |
| Transmission | CVT, auto speed change |
| Clutch | centrifugal, dry type |
| Length x width x height | 1850 x 1060 x 1130 mm |
| Wheelbase | 1200 mm |
| Curb weight | 243 kg |
| Top speed | above 85 |
| Front tire | AT22x7-10 (on-road) |
| Rear tire | AT22x10-9 (on-road) |
| Front brake | disc, 175mm |
| Rear brake | disc, 190mm |
| Front suspension | double arm |
| Rear suspension | unit swing |
Engine
Frame / Body
Models that share the most parts with Quadlander 300 (UA30A-A)
Top five models ranked by the share of this model's part numbers they also list.
Buy with confidence
How SYM parts lookup works
A few simple checks help you find the right genuine part before you order.
- 1
Choose the Correct Model Code
This can be difficult. We recommend searching by VIN, checking whether your part is available across all potentially correct model codes, and contacting us with the bike vin, engine number, model and a picture if you are unsure.
- 2
Select the desired diagram
Each model page displays all section diagrams. It also shows when a section is an exact match for a part section on another model.
- 3
Select Your Parts
Each numbered part corresponds to a number in the diagram. Parts almost always show when stock is low or out, and coloured parts display their options in a dropdown.
