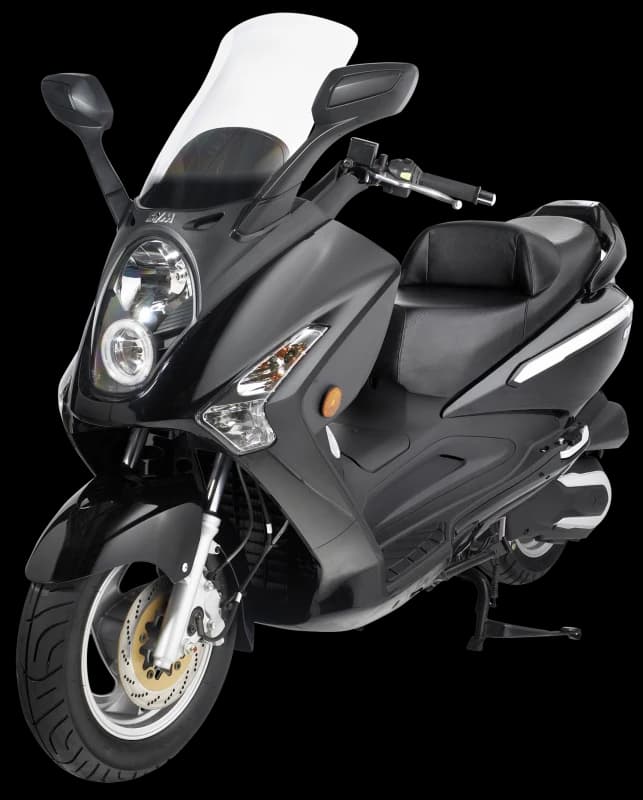

Firenze250 (LM25W-8)
Choose a section to see its exploded diagram and parts.
Click to download: official Firenze250 service manual (PDF)
The Firenze250 (LM25W-8) is powered by a 4-stroke, single cylinder, forced air cooled engine displacing 249.4cc, producing 15.4 kW @ 7500 rpm. Drive goes through a CVT, auto speed change with a centrifugal, dry type. It measures 2165mm long, 870mm wide and 1380mm tall, with a 1495mm wheelbase and a curb weight of 173kg. Top speed is above 115. It rides on a 110/90-13 56P front tire and 130/70-13 57P rear tire, with disc, 240mm front and disc, 220mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, single cylinder, forced air cooled |
|---|---|
| Displacement | 249.4 cc |
| Bore x stroke | 71 x 63 mm |
| Compression ratio | 10.5:1 |
| Max power | 15.4 kW @ 7500 rpm |
| Max torque | 21.6 N·m @ 6500 rpm |
| Fuel | unleaded, above 92 octane |
| Ignition | full transistor ignition |
| Starting system | electric starter |
| Transmission | CVT, auto speed change |
| Clutch | centrifugal, dry type |
| Length x width x height | 2165 x 870 x 1380 mm |
| Wheelbase | 1495 mm |
| Curb weight | 173 kg |
| Top speed | above 115 |
| Front tire | 110/90-13 56P |
| Rear tire | 130/70-13 57P |
| Front brake | disc, 240mm |
| Rear brake | disc, 220mm |
| Front suspension | telescopic |
| Rear suspension | unit swing |
Engine
Identical to 1 diagram on other models›
- Firenze300i LM30W-8 — E01 CYLINDER HEAD COVER· same parts
Frame / Body
Models that share the most parts with Firenze250 (LM25W-8)
Top five models ranked by the share of this model's part numbers they also list.
Buy with confidence
How SYM parts lookup works
A few simple checks help you find the right genuine part before you order.
- 1
Choose the Correct Model Code
This can be difficult. We recommend searching by VIN, checking whether your part is available across all potentially correct model codes, and contacting us with the bike vin, engine number, model and a picture if you are unsure.
- 2
Select the desired diagram
Each model page displays all section diagrams. It also shows when a section is an exact match for a part section on another model.
- 3
Select Your Parts
Each numbered part corresponds to a number in the diagram. Parts almost always show when stock is low or out, and coloured parts display their options in a dropdown.
