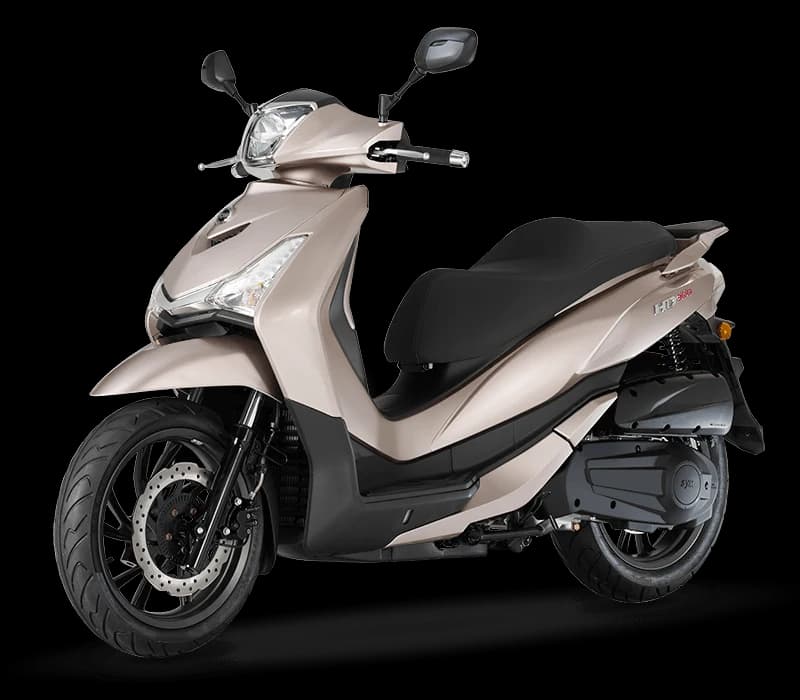

HD300 (LS30W1-EU)
Choose a section to see its exploded diagram and parts.
Click to download: official HD300 service manual (PDF)
The HD300 (LS30W1-EU) is powered by a 4-stroke, SOHC, 4-valve, 1 cylinder, liquid cooled engine displacing 278.3cc, producing 27 PS @ 8000 rpm. Drive goes through a CVT (continuously variable transmission) with a centrifugal. It measures 2220mm long, 770mm wide and 1230mm tall, with a 1500mm wheelbase and a curb weight of 174kg. It rides on a 110/70-16 52P front tire and 140/70-16 65P rear tire, with single disc 287mm, single-sided 2-piston caliper front and single disc 260mm, single-sided 2-piston caliper rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, SOHC, 4-valve, 1 cylinder, liquid cooled |
|---|---|
| Displacement | 278.3 cc |
| Bore x stroke | 75 x 63 mm |
| Compression ratio | 10.4:1 |
| Max power | 27 PS @ 8000 rpm |
| Max torque | 2.6 kgf-m @ 6000 rpm |
| Fuel | unleaded 92 RON or gasohol up to 5% |
| Fuel tank capacity | 10 L |
| Ignition | battery and coil, electronically advanced |
| Starting system | electric starter |
| Transmission | CVT (continuously variable transmission) |
| Clutch | centrifugal |
| Length x width x height | 2220 x 770 x 1230 mm |
| Wheelbase | 1500 mm |
| Curb weight | 174 kg |
| Front tire | 110/70-16 52P |
| Rear tire | 140/70-16 65P |
| Front brake | single disc 287mm, single-sided 2-piston caliper |
| Rear brake | single disc 260mm, single-sided 2-piston caliper |
| Front suspension | telescopic fork, 88mm travel |
| Rear suspension | dual shock absorber, 75mm travel |
Engine
Frame / Body
Models that share the most parts with HD300 (LS30W1-EU)
Top five models ranked by the share of this model's part numbers they also list.
Buy with confidence
How SYM parts lookup works
A few simple checks help you find the right genuine part before you order.
- 1
Choose the Correct Model Code
This can be difficult. We recommend searching by VIN, checking whether your part is available across all potentially correct model codes, and contacting us with the bike vin, engine number, model and a picture if you are unsure.
- 2
Select the desired diagram
Each model page displays all section diagrams. It also shows when a section is an exact match for a part section on another model.
- 3
Select Your Parts
Each numbered part corresponds to a number in the diagram. Parts almost always show when stock is low or out, and coloured parts display their options in a dropdown.
