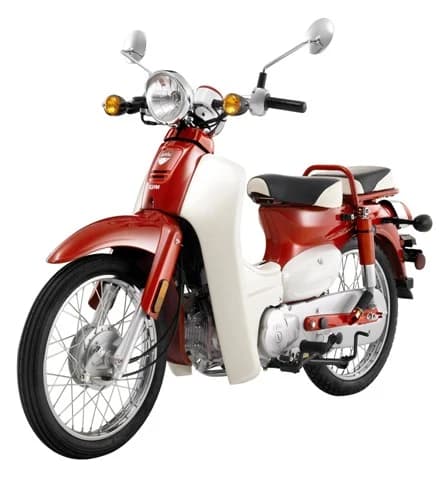

Symba (MB10A7-8)
Choose a section to see its exploded diagram and parts.
Click to download: official Symba service manual (PDF)
The Symba (MB10A7-8) is powered by a 4-stroke, air cooled, single cylinder engine displacing 101.4cc, producing 6.8 PS @ 8500 rpm. Drive goes through a 4-speed, circulated (not CVT) with a wet multi-plate, auto centrifugal. It measures 1910mm long, 690mm wide and 1055mm tall, with a 1225mm wheelbase and a curb weight of 95kg. Top speed is over 80. It rides on a 2.50-17 38L front tire and 2.50-17 38L rear tire, with drum, 110mm front and drum, 110mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, air cooled, single cylinder |
|---|---|
| Displacement | 101.4 cc |
| Bore x stroke | 52.4 x 47 mm |
| Compression ratio | 9.2:1 |
| Max power | 6.8 PS @ 8500 rpm |
| Max torque | 0.69 kg-m @ 6000 rpm |
| Fuel | unleaded gasoline |
| Ignition | CDI |
| Starting system | kick / electric starter |
| Transmission | 4-speed, circulated (not CVT) |
| Clutch | wet multi-plate, auto centrifugal |
| Length x width x height | 1910 x 690 x 1055 mm |
| Wheelbase | 1225 mm |
| Curb weight | 95 kg |
| Top speed | over 80 |
| Front tire | 2.50-17 38L |
| Rear tire | 2.50-17 38L |
| Front brake | drum, 110mm |
| Rear brake | drum, 110mm |
| Front suspension | telescopic |
| Rear suspension | swing arm |
Engine
Frame / Body
Models that share the most parts with Symba (MB10A7-8)
Top five models ranked by the share of this model's part numbers they also list.
Buy with confidence
How SYM parts lookup works
A few simple checks help you find the right genuine part before you order.
- 1
Choose the Correct Model Code
This can be difficult. We recommend searching by VIN, checking whether your part is available across all potentially correct model codes, and contacting us with the bike vin, engine number, model and a picture if you are unsure.
- 2
Select the desired diagram
Each model page displays all section diagrams. It also shows when a section is an exact match for a part section on another model.
- 3
Select Your Parts
Each numbered part corresponds to a number in the diagram. Parts almost always show when stock is low or out, and coloured parts display their options in a dropdown.
