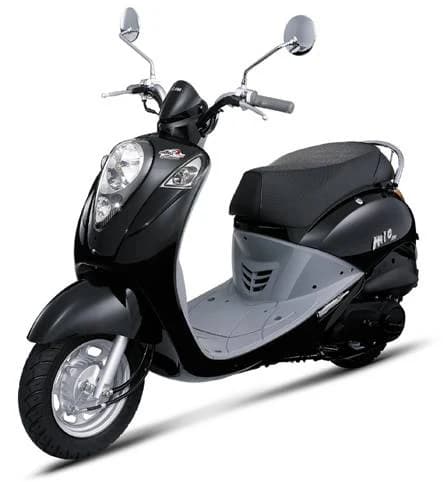

Mio 100 (HU10W1-8)
Choose a section to see its exploded diagram and parts.
Click to download: official Mio 100 service manual (PDF)
The Mio 100 (HU10W1-8) is powered by a 4-stroke, single cylinder, forced air cooled engine displacing 101cc, producing 7.7 PS @ 8000 rpm. Drive goes through a CVT, auto speed change with a centrifugal, dry type. It measures 1710mm long, 700mm wide and 1020mm tall, with a 1220mm wheelbase and a curb weight of 87.5kg. Top speed is above 90. It rides on a 90/90-10 50J front tire and 90/90-10 50J rear tire, with disc, 160mm; drum, 110mm variant front and drum, 110mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, single cylinder, forced air cooled |
|---|---|
| Displacement | 101 cc |
| Bore x stroke | 50 x 51.5 mm |
| Compression ratio | 10.5:1 |
| Max power | 7.7 PS @ 8000 rpm |
| Max torque | 0.77 kg-m @ 6500 rpm |
| Fuel | unleaded, above 92 octane |
| Ignition | CDI |
| Starting system | electric & kick |
| Transmission | CVT, auto speed change |
| Clutch | centrifugal, dry type |
| Length x width x height | 1710 x 700 x 1020 mm |
| Wheelbase | 1220 mm |
| Curb weight | 87.5 kg |
| Top speed | above 90 |
| Front tire | 90/90-10 50J |
| Rear tire | 90/90-10 50J |
| Front brake | disc, 160mm; drum, 110mm variant |
| Rear brake | drum, 110mm |
| Front suspension | telescopic |
| Rear suspension | unit swing |
Engine
Frame / Body
Identical to 1 diagram on other models›
- Mio 50 HU05W2-8 — F07 RR. CUSHION-SIDE COVER· same parts
Models that share the most parts with Mio 100 (HU10W1-8)
Top five models ranked by the share of this model's part numbers they also list.
