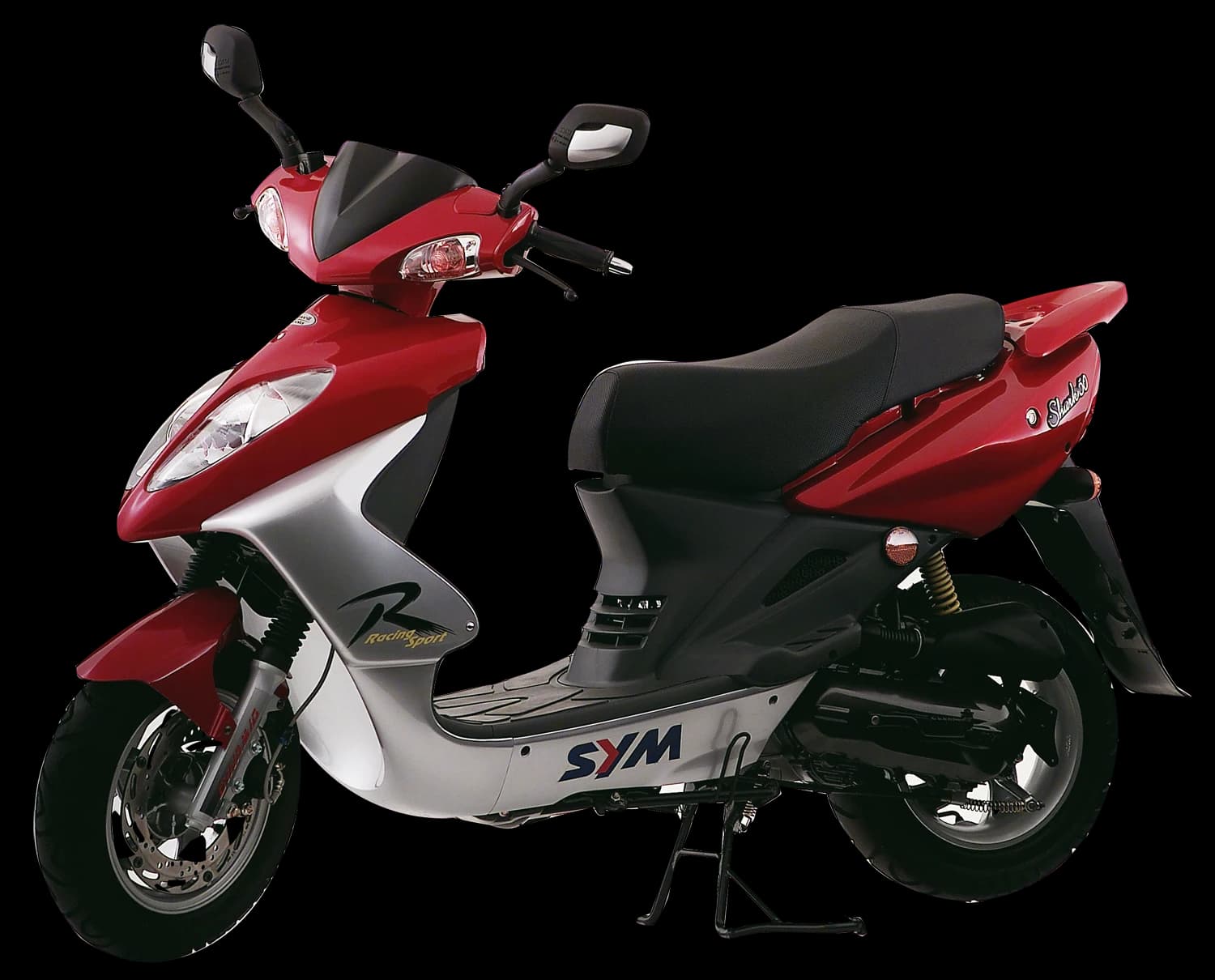

Shark 150 (HS15W-8)
Choose a section to see its exploded diagram and parts.
Click to download: official Shark 150 service manual (PDF)
The Shark 150 (HS15W-8) is powered by a 4-stroke, single cylinder, forced air cooled engine displacing 149.5cc, producing 12.4 PS @ 8500 rpm. Drive goes through a CVT with a centrifugal, dry type. It measures 1933mm long, 700mm wide and 1160mm tall, with a 1335mm wheelbase and a curb weight of 123kg. Top speed is 100 and above. It rides on a 100/90-12 (T/L) front tire and 130/70-12 (T/L) rear tire, with disc, 273mm front and disc, 200mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, single cylinder, forced air cooled |
|---|---|
| Displacement | 149.5 cc |
| Bore x stroke | 57.4 x 57.8 mm |
| Compression ratio | 9.6:1 |
| Max power | 12.4 PS @ 8500 rpm |
| Max torque | 1.15 kg-m @ 6500 rpm |
| Fuel | unleaded |
| Ignition | CDI |
| Starting system | electric & kick |
| Transmission | CVT |
| Clutch | centrifugal, dry type |
| Length x width x height | 1933 x 700 x 1160 mm |
| Wheelbase | 1335 mm |
| Curb weight | 123 kg |
| Top speed | 100 and above |
| Front tire | 100/90-12 (T/L) |
| Rear tire | 130/70-12 (T/L) |
| Front brake | disc, 273mm |
| Rear brake | disc, 200mm |
| Front suspension | telescopic |
| Rear suspension | unit swing |
Engine
Identical to 1 diagram on other models›
- EuroMX 150 HF15W-8 — E03 CYLINDER HEAD L. COVER· same parts
Identical to 1 diagram on other models›
- EuroMX 150 HF15W-8 — E06 CYLINDER· same parts
Identical to 1 diagram on other models›
- EuroMX 150 HF15W-8 — E07 R. CRANK CASE COVER· same parts
Identical to 1 diagram on other models›
- EuroMX 150 HF15W-8 — E08 AC. GENERATOR· same parts
Identical to 1 diagram on other models›
- EuroMX 150 HF15W-8 — E09 OIL PUMP· same parts
Frame / Body
Identical to 1 diagram on other models›
- EuroMX 150 HF15W-8 — F18 Air Cleaner· same parts
Models that share the most parts with Shark 150 (HS15W-8)
Top five models ranked by the share of this model's part numbers they also list.
