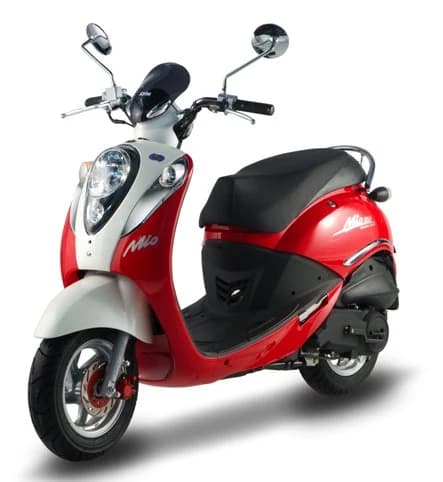

Mio 50 (HU05W2-8)
Choose a section to see its exploded diagram and parts.
Click to download: official Mio 50 service manual (PDF)
The Mio 50 (HU05W2-8) is powered by a 4-stroke, single cylinder, forced air cooled engine displacing 49.5cc, producing 3.8 PS @ 8000 rpm. Drive goes through a CVT, auto speed change with a centrifugal, dry type. It measures 1710mm long, 700mm wide and 1005mm tall, with a 1170mm wheelbase and a curb weight of 80kg. Top speed is above 60. It rides on a 3.0-10 42J front tire and 90/90-10 50J rear tire, with drum, 110mm front and drum, 95mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, single cylinder, forced air cooled |
|---|---|
| Displacement | 49.5 cc |
| Bore x stroke | 37 x 46 mm |
| Compression ratio | 12.6:1 |
| Max power | 3.8 PS @ 8000 rpm |
| Max torque | 0.38 kg-m @ 6500 rpm |
| Fuel | unleaded, above 92 octane |
| Ignition | CDI |
| Starting system | electric & kick |
| Transmission | CVT, auto speed change |
| Clutch | centrifugal, dry type |
| Length x width x height | 1710 x 700 x 1005 mm |
| Wheelbase | 1170 mm |
| Curb weight | 80 kg |
| Top speed | above 60 |
| Front tire | 3.0-10 42J |
| Rear tire | 90/90-10 50J |
| Front brake | drum, 110mm |
| Rear brake | drum, 95mm |
| Front suspension | telescopic |
| Rear suspension | unit swing |
Engine
Frame / Body
Identical to 1 diagram on other models›
- Mio 100 HU10W1-8 — F07 RR. CUSHION-SIDE COVER· same parts
Models that share the most parts with Mio 50 (HU05W2-8)
Top five models ranked by the share of this model's part numbers they also list.
