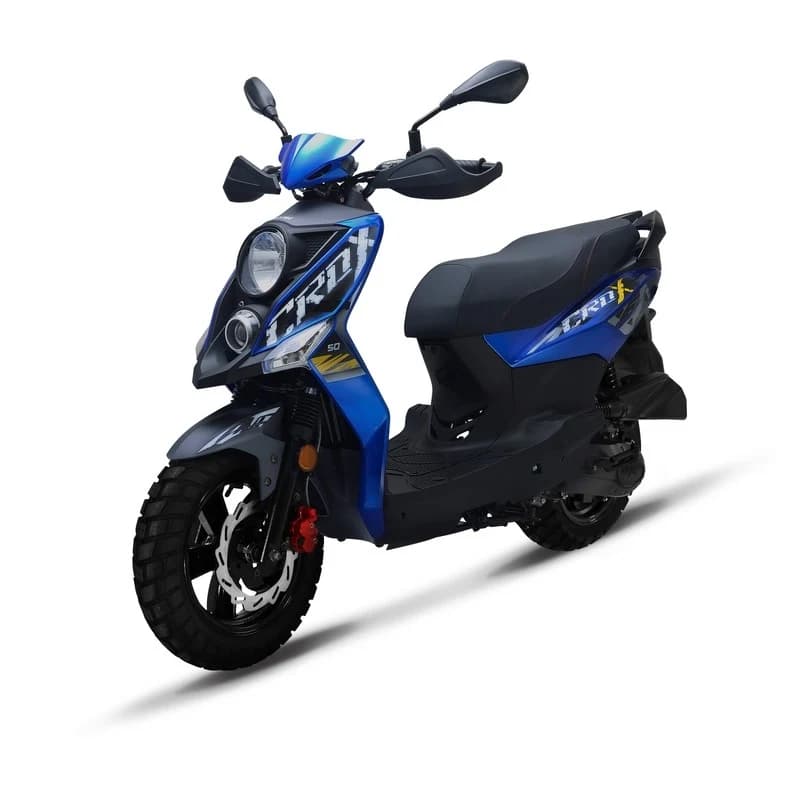

CROX50 E5 (AE05WB-EU)
Choose a section to see its exploded diagram and parts.
Click to download: official CROX50 E5 service manual (PDF)
The CROX50 E5 (AE05WB-EU) is powered by a 4-stroke, single cylinder, forced air cooled engine displacing 49cc, producing 2.2 kW @ 8000 rpm (45km/h test). Drive goes through a CVT with a auto centrifugal clutch. It measures 1905mm long, 750mm wide and 1095mm tall, with a 1310mm wheelbase and a curb weight of 105kg. Top speed is under 45. It rides on a 120/70-12 front tire and 130/70-12 rear tire, with disc, 226mm front and drum, 110mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, single cylinder, forced air cooled |
|---|---|
| Displacement | 49 cc |
| Bore x stroke | 37 x 46 mm |
| Compression ratio | 11.0±0.2:1 |
| Max power | 2.2 kW @ 8000 rpm (45km/h test) |
| Max torque | 3.0 N·m @ 6500 rpm (45km/h test) |
| Fuel | unleaded 92/94 |
| Fuel tank capacity | 6.5±0.2 L |
| Ignition | transistorized coil ignition |
| Starting system | electric & kick starter |
| Transmission | CVT |
| Clutch | auto centrifugal clutch |
| Length x width x height | 1905 x 750 x 1095 mm |
| Wheelbase | 1310 mm |
| Curb weight | 105 kg |
| Top speed | under 45 |
| Front tire | 120/70-12 |
| Rear tire | 130/70-12 |
| Front brake | disc, 226mm |
| Rear brake | drum, 110mm |
| Front suspension | telescopic fork |
| Rear suspension | unit swing arm |
Engine
Identical to 1 diagram on other models›
Frame / Body
Models that share the most parts with CROX50 E5 (AE05WB-EU)
Top five models ranked by the share of this model's part numbers they also list.
Buy with confidence
How SYM parts lookup works
A few simple checks help you find the right genuine part before you order.
- 1
Choose the Correct Model Code
This can be difficult. We recommend searching by VIN, checking whether your part is available across all potentially correct model codes, and contacting us with the bike vin, engine number, model and a picture if you are unsure.
- 2
Select the desired diagram
Each model page displays all section diagrams. It also shows when a section is an exact match for a part section on another model.
- 3
Select Your Parts
Each numbered part corresponds to a number in the diagram. Parts almost always show when stock is low or out, and coloured parts display their options in a dropdown.
