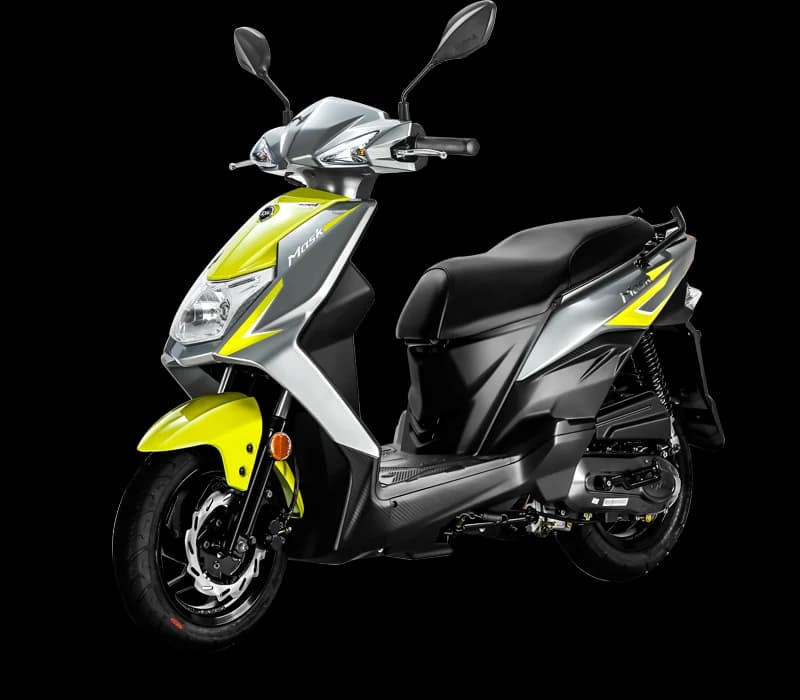

Orbit III E5 (XE12W1-IT)
Choose a section to see its exploded diagram and parts.
Click to download: official Orbit III E5 service manual (PDF)
The Orbit III E5 (XE12W1-IT) is powered by a 4-stroke, single cylinder, forced air cooled engine displacing 124.65cc, producing 7.5 kW @ 8500 rpm. Drive goes through a V-belt CVT with a centrifugal, dry type. It measures 1900±20mm long, 682±10mm wide and 1120±20mm tall, with a 1320±10mm wheelbase and a curb weight of 115kg. Top speed is 95 and above. It rides on a 110/70-12 front tire and 120/70-12 rear tire, with disc, 226mm front and drum, 130mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, single cylinder, forced air cooled |
|---|---|
| Displacement | 124.65 cc |
| Bore x stroke | 52.4 x 57.8 mm |
| Compression ratio | 10.68±0.2:1 |
| Max power | 7.5 kW @ 8500 rpm |
| Max torque | 9.3 N·m @ 6500 rpm |
| Fuel | unleaded gasoline |
| Fuel tank capacity | 5.7 L |
| Starting system | electric starter |
| Transmission | V-belt CVT |
| Clutch | centrifugal, dry type |
| Length x width x height | 1900±20 x 682±10 x 1120±20 mm |
| Wheelbase | 1320±10 mm |
| Curb weight | 115 kg |
| Top speed | 95 and above |
| Front tire | 110/70-12 |
| Rear tire | 120/70-12 |
| Front brake | disc, 226mm |
| Rear brake | drum, 130mm |
| Front suspension | telescopic fork |
| Rear suspension | unit swing arm |
Engine
Identical to 1 diagram on other models›
Identical to 1 diagram on other models›
Identical to 1 diagram on other models›
Identical to 1 diagram on other models›
Frame / Body
Models that share the most parts with Orbit III E5 (XE12W1-IT)
Top five models ranked by the share of this model's part numbers they also list.
