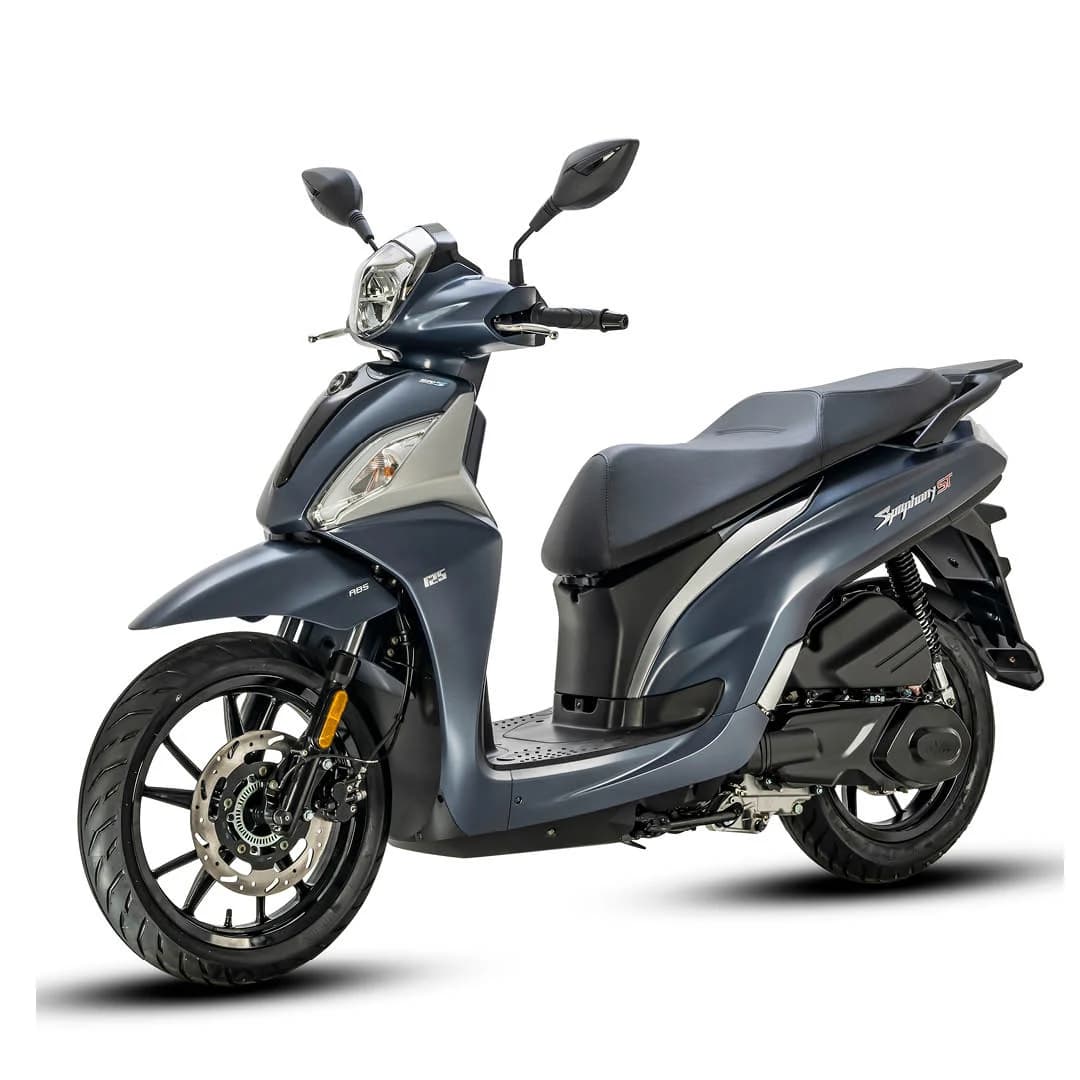

Symphony ST2 2022 (XL20W1-IT)
Choose a section to see its exploded diagram and parts.
Click to download: official Symphony ST2 2022 service manual (PDF)
The Symphony ST2 2022 (XL20W1-IT) is powered by a 4-stroke, single cylinder, forced air cooled engine displacing 169cc, producing 9 kW @ 7500 rpm. Drive goes through a CVT. It measures 2070mm long, 735mm wide and 1190mm tall, with a 1385mm wheelbase and a curb weight of 128kg. Top speed is 99 km/h. It rides on a 110/70-16 front tire and 120/80-14 rear tire, with disc, 260mm front and disc, 220mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, single cylinder, forced air cooled |
|---|---|
| Displacement | 169 cc |
| Bore x stroke | 61 x 57.8 mm |
| Compression ratio | 10.3±0.2:1 |
| Max power | 9 kW @ 7500 rpm |
| Max torque | 12.5 N·m @ 6000 rpm |
| Fuel | unleaded |
| Fuel tank capacity | 7.0±0.2 L |
| Ignition | transistorized coil ignition |
| Starting system | electric |
| Transmission | CVT |
| Length x width x height | 2070 x 735 x 1190 mm |
| Wheelbase | 1385 mm |
| Curb weight | 128 kg |
| Top speed | 99 km/h |
| Front tire | 110/70-16 |
| Rear tire | 120/80-14 |
| Front brake | disc, 260mm |
| Rear brake | disc, 220mm |
| Front suspension | telescopic fork |
| Rear suspension | double |
Engine
Frame / Body
Models that share the most parts with Symphony ST2 2022 (XL20W1-IT)
Top five models ranked by the share of this model's part numbers they also list.
Buy with confidence
How SYM parts lookup works
A few simple checks help you find the right genuine part before you order.
- 1
Choose the Correct Model Code
This can be difficult. We recommend searching by VIN, checking whether your part is available across all potentially correct model codes, and contacting us with the bike vin, engine number, model and a picture if you are unsure.
- 2
Select the desired diagram
Each model page displays all section diagrams. It also shows when a section is an exact match for a part section on another model.
- 3
Select Your Parts
Each numbered part corresponds to a number in the diagram. Parts almost always show when stock is low or out, and coloured parts display their options in a dropdown.
