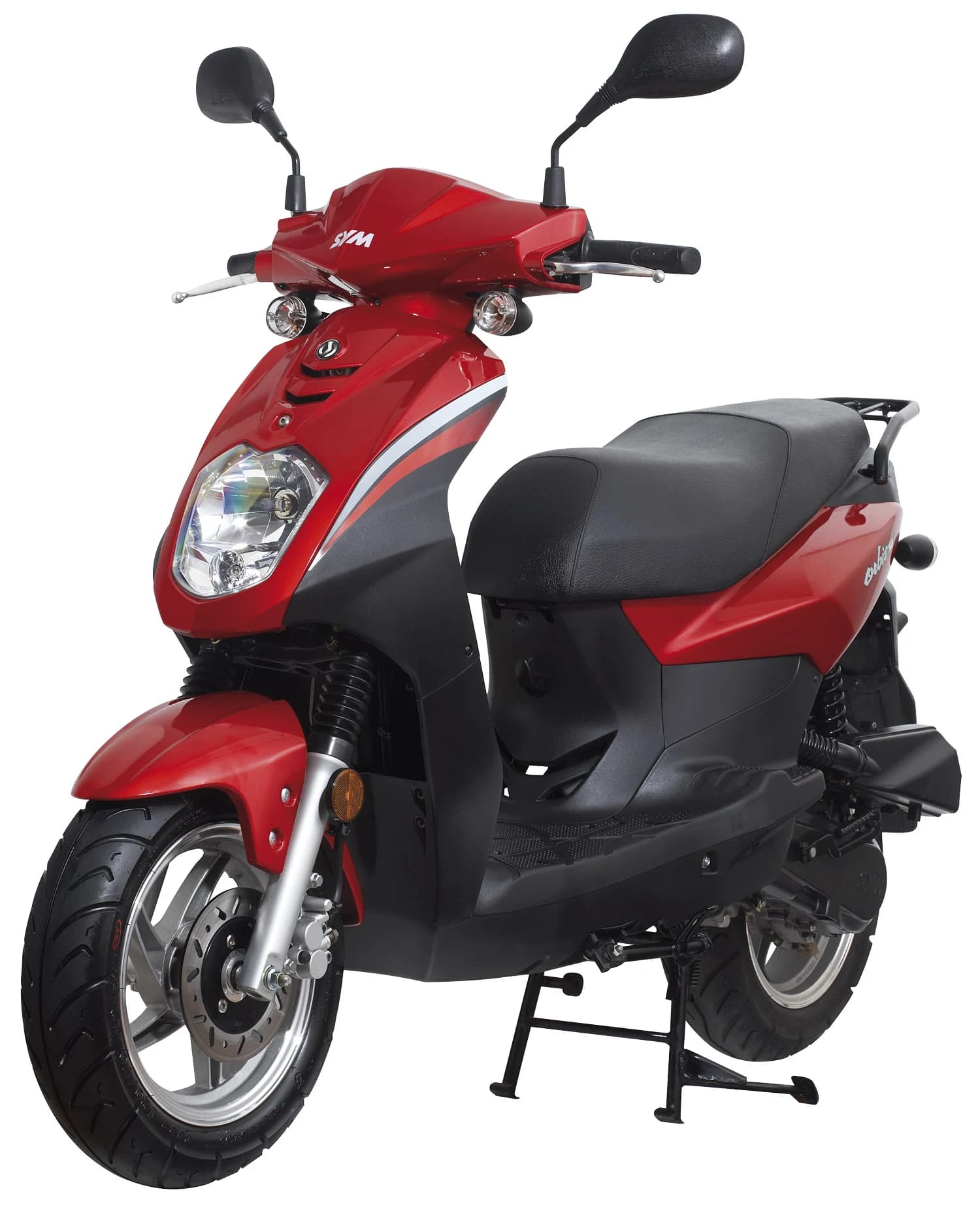

Orbit 50 (AV05W-8)
Choose a section to see its exploded diagram and parts.
Click to download: official Orbit 50 service manual (PDF)
The Orbit 50 (AV05W-8) is powered by a 4-stroke, single cylinder, horizontal, forced air cooled engine displacing 49.5cc, producing 2.35 kW @ 8500 rpm. Drive goes through a CVT with a centrifugal, dry type. It measures 1906mm long, 694mm wide and 1138mm tall, with a 1327mm wheelbase and a curb weight of 99kg. Top speed is 45 km/h. It rides on a 120/70-12 (56J) front tire and 130/70-12 (56J) rear tire, with disc, 190mm front and drum, 110mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, single cylinder, horizontal, forced air cooled |
|---|---|
| Displacement | 49.5 cc |
| Bore x stroke | 39 x 41.5 mm |
| Compression ratio | 11.8:1 |
| Max power | 2.35 kW @ 8500 rpm |
| Max torque | 2.91 N·m @ 6500 rpm |
| Fuel | petrol |
| Ignition | CDI |
| Starting system | electric & foot |
| Transmission | CVT |
| Clutch | centrifugal, dry type |
| Length x width x height | 1906 x 694 x 1138 mm |
| Wheelbase | 1327 mm |
| Curb weight | 99 kg |
| Top speed | 45 km/h |
| Front tire | 120/70-12 (56J) |
| Rear tire | 130/70-12 (56J) |
| Front brake | disc, 190mm |
| Rear brake | drum, 110mm |
| Front suspension | telescopic fork |
| Rear suspension | single swing arm |
