HD200 evo (LH18W7-6)
Choose a section to see its exploded diagram and parts.
Click to download: official HD200 evo service manual (PDF)

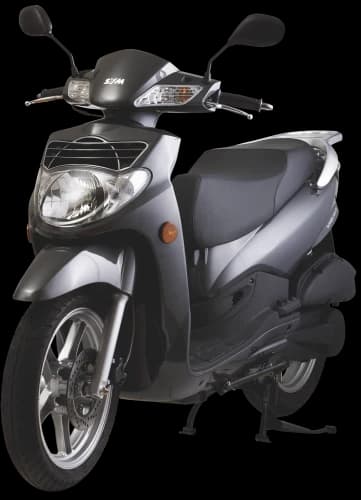

The HD200 evo (LH18W7-6) is powered by a 4-stroke, single cylinder, water cooled engine displacing 171.2cc, producing 15.0 PS @ 7750 rpm. Drive goes through a CVT with a centrifugal, dry type. It measures 2065mm long, 705mm wide and 1255mm tall, with a 1385mm wheelbase and a curb weight of 135kg. Top speed is above 108. It rides on a 100/80-16 50P front tire and 120/80-16 60P rear tire, with disc, 220mm front and disc, 220mm rear brakes.
Full specifications›
Specifications are drawn directly from the above linked service manual. Model variation specifications may vary.
| Engine | 4-stroke, single cylinder, water cooled |
|---|---|
| Displacement | 171.2 cc |
| Bore x stroke | 61 x 58.6 mm |
| Compression ratio | 10.8:1 |
| Max power | 15.0 PS @ 7750 rpm |
| Max torque | 1.61 kg-m @ 6500 rpm |
| Fuel | unleaded |
| Ignition | full transistor ignition |
| Starting system | electric starter |
| Transmission | CVT |
| Clutch | centrifugal, dry type |
| Length x width x height | 2065 x 705 x 1255 mm |
| Wheelbase | 1385 mm |
| Curb weight | 135 kg |
| Top speed | above 108 |
| Front tire | 100/80-16 50P |
| Rear tire | 120/80-16 60P |
| Front brake | disc, 220mm |
| Rear brake | disc, 220mm |
| Front suspension | telescopic fork |
| Rear suspension | unit swing |
